Custom Parts

With Composition Tools it is possible to split a Curved Poly model into separated parts, where each part can be assigned a different materials (as we have already seen in the Parts List). Each part contains a different subset of the model polygons, and will become a submesh in the final computed mesh once any interpolation process is applied.

the Parts section of the Tools Set has 6 available actions:

• Generate Part with Selection: Generates a new part using selected polygons.
• Move Polygons to Part: Removes the selected polygons from their parts and put them in the actual selected part. You can change the selected geometry using the parts inspector which will be explained in the next subsection.
• Reset Parts: Clear the model from separated parts, merging back all the polygons into one big part.
• Reset Parts by Mat: Merge together into one single part all the parts using the same material. The final amount of parts will be the exact amount of materials which has been assigned in the inspector or in the Parts List.
• Hide Unselected Parts: Hide all the parts but the one being selected. You can change the selected part using the parts inspector which will be explained in the next subsection.
• Destroy Unused Parts: Destroy any empty part. Parts may get empty after after its polygons have been cancelled in the Edit Operator, or after they have been moved into other parts.

Newly generated parts will automatically be assigned a new material, taken (by default) from a pool of materials which can be configured in the settings: check the Setup section for this.

Advanced Parts Inspector

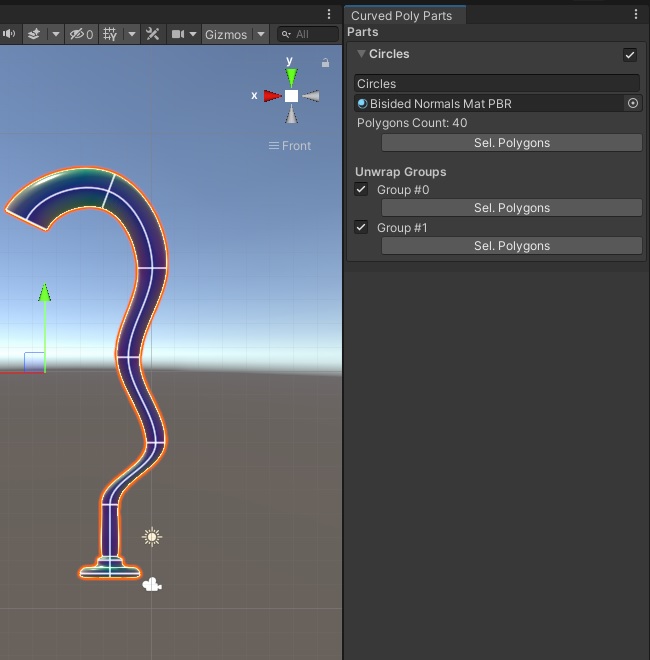

The Advanced Parts inspector is a window which gives you details about your parts. It can be opened with the menu at Tools>Curved Poly>Others>Parts Inspector. For each Part the inspector renders a foldout panel which can be opened to have more informations and controls over each part. From the inspector you can change or view:

• the Active Part: only one part can be active at a time. The active part will be used in many other operators, like the Edit Tools or the Composition Tools when they have to generate new polygons. You can change the selected one by clicking on the checkbox near its name, which is accessible reguardless the part inspector foldout being open or closed.
• Name: It's not mandatory to have named parts, but it's useful. The name can only be changed when the foldout is open, but it's still visible when it's closed.
• Polygons Count: shows the amount of polygons in the part.
• Select Polygons: select all the polygons in the part at once.
• Unwrap Groups: the list of unwrap groups in the model. You have the option here to select all the polygons belonging to an unwrap group at once. See Materials Tools for more details about unwrap functions.
• Unwrap Functions: unwrap functions are functions used to generate unwrap groups. See Materials Tools for more details about unwrap functions.
